Detail

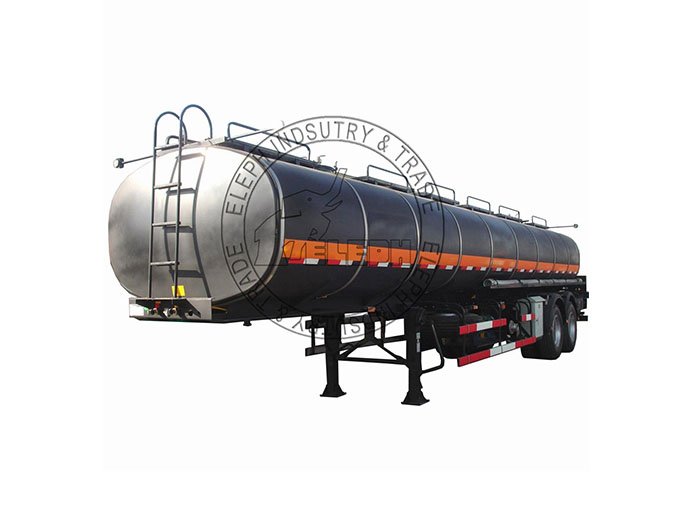

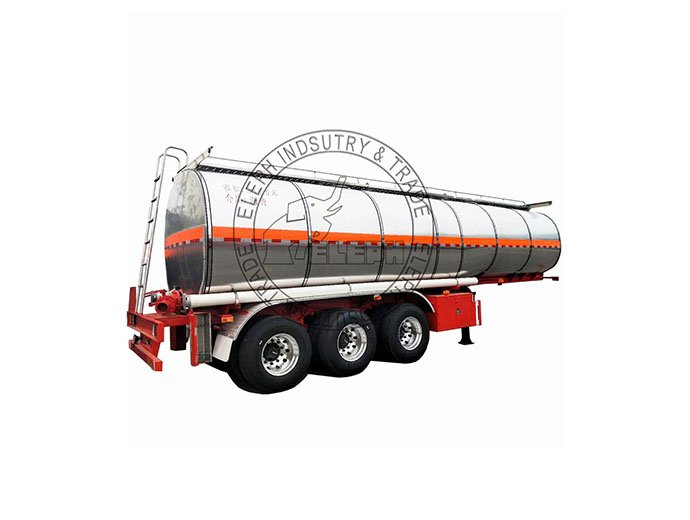

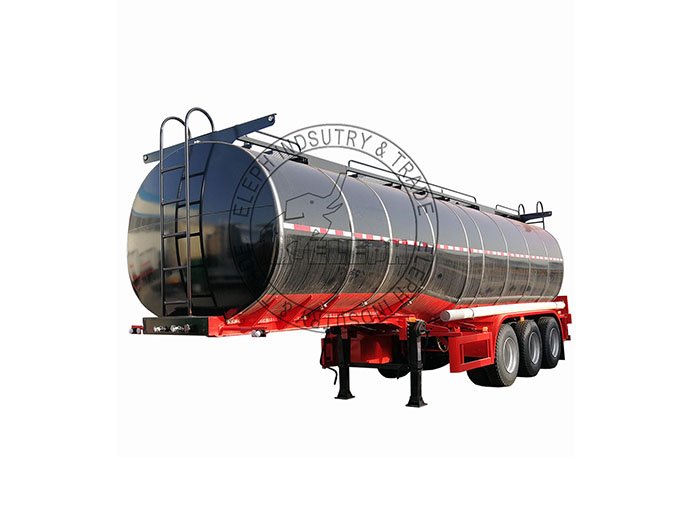

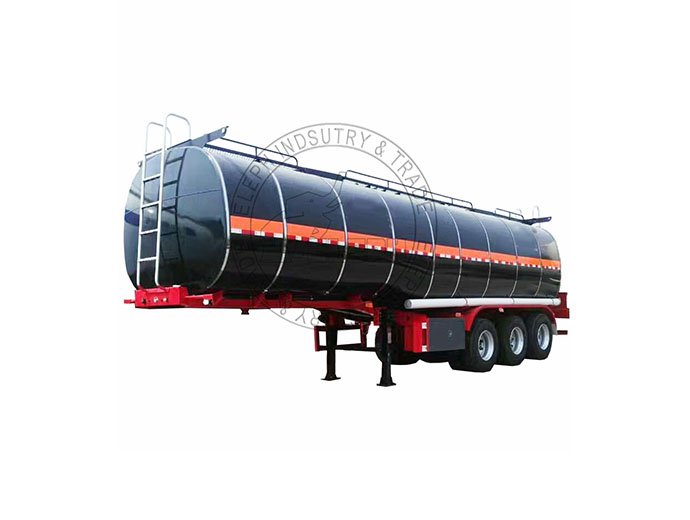

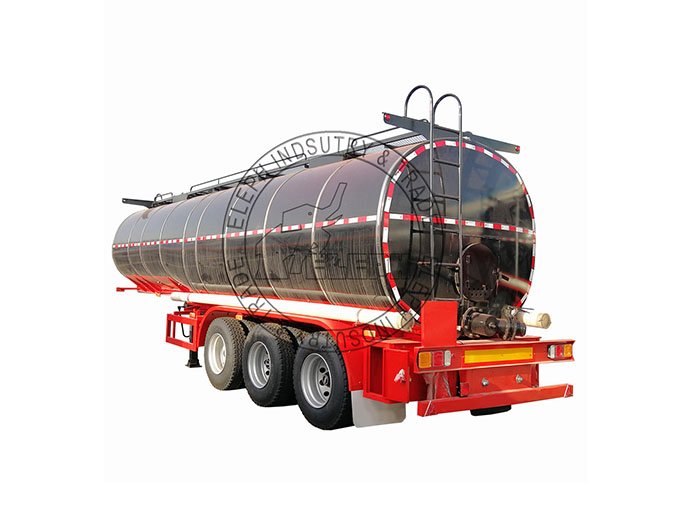

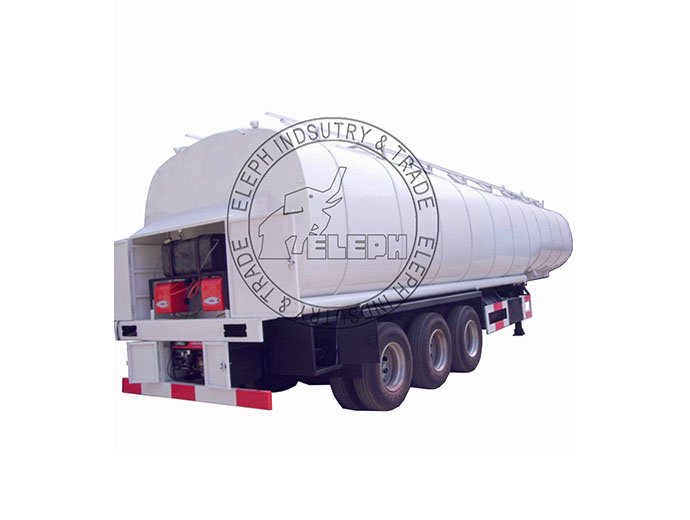

BITUMEN HEATING TANK SEMI TRAILER
Volume(CBM)50CBM (Size can be Accustomed)
MediumBitumen
Overall Dimension(L*W*H)(mm)12800*2500*3850
Shape of the tank bodyStraight
Tank body thickness5mm/Q235B
Dish end thickness5mm/Q235B
Baffle4mm/Q235B
Dish end shapeOval
Compartment(piece)One

Manhole

Two(500mm in dimension)
Discharge valve(piece)Two
Valve formBall vale
Valve specification6”
Insulation or notYes
Running part
1,Axle number&specification:13T FUWA axle,3 pieces,with ABS
2,Suspension specification&number:Leaf spring 13*90*10  6 pieces
3,Kingpin:90#
4,Relay valve:Copy the American standard
5,Landing gears:20T
6,Tire specification&number:Brand Triangle 12R22.5,12 pieces
7,Rim specification&number:9.0*22.5,12 pieces
8,Break chamber:single/double/double,6 pieces
Electric System
1.Voltage: 24v
2.Receptacle: 7 ways (7 wire harness)
3.Tail lamp with turn signal, brake light & reflector, side lamp etc
Accessories
1,Fire extinguishing8kg*2 pieces
2,Tool boxOne piece*1.5m
3,Spare wheel carrierOne piece
