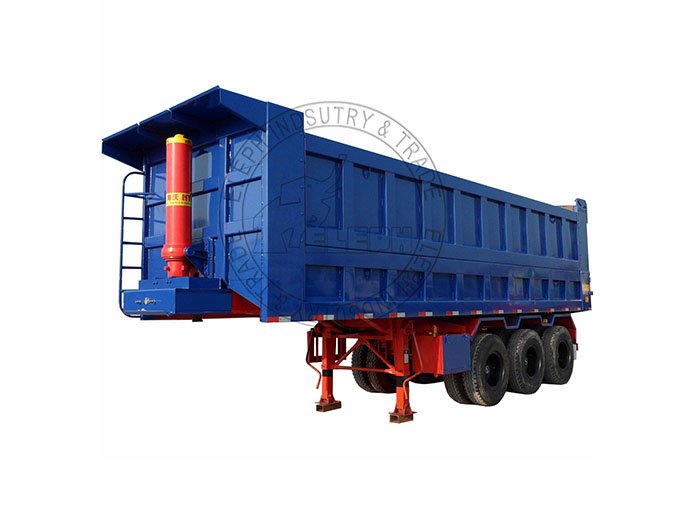

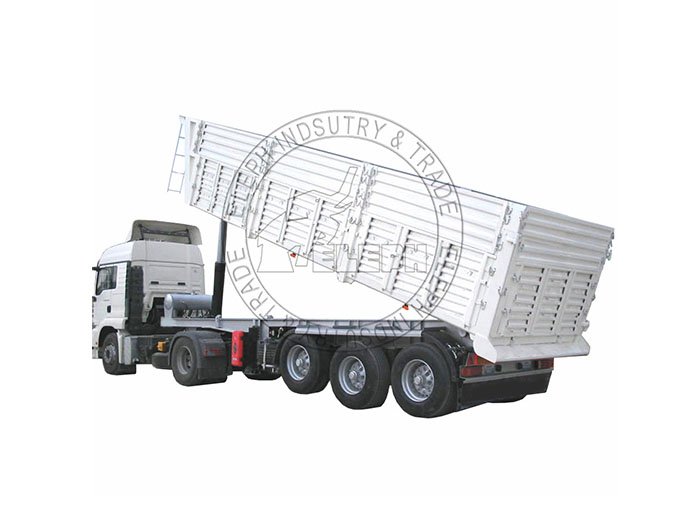

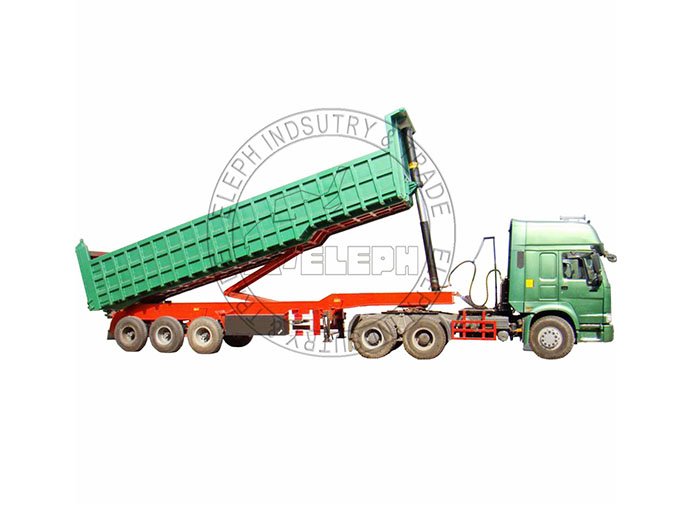

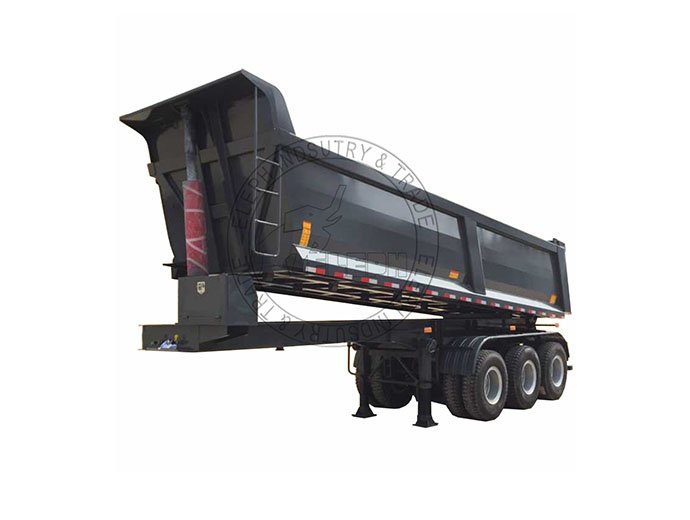

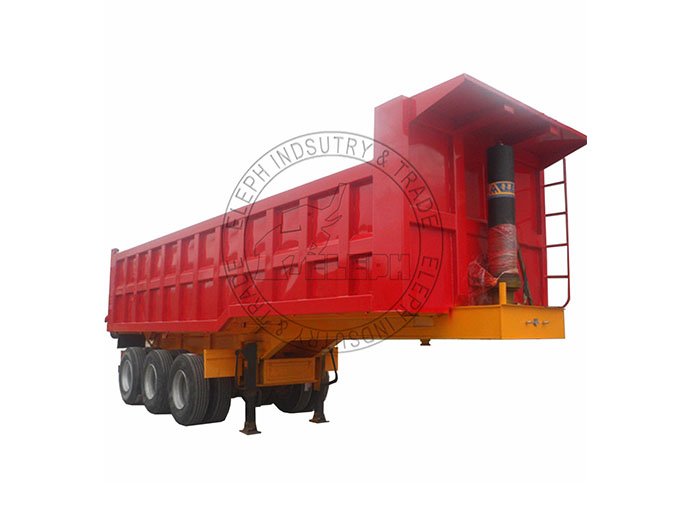

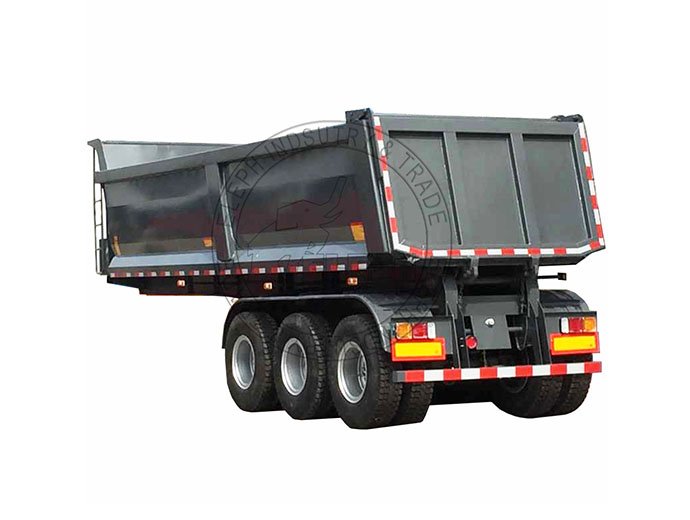

Box Body Dumper Truck Semi Trailer
ModelALP9350DPST
Dimension(Optional)Axle No.Rated Load (kg)Tire No.Tire Size
By Customer Needs2250008

825R20 1000R20 1100R20 1200R20 12R22.5

 (Other Size / Single Super Tire Contact with Supplier)

33500012
45000016
ManufactureQingdao Eleph Industry & Trade Co., Ltd
Wheel Base  (mm)1310
leaf-spring Pcs10
Axle13/16/18 T
SuspensionHeavy Duty Mechanic Suspension with Leaf Springs
Main Beam MaterialQ345B manganese plates, automatic submerged arc welded
Brake SystemDual line braking system with automatic braking system/chambers
Brake Air ChamberDouble Model
Kingpin2' or 3.5' Interchangeable
Landing gear28T loading capacity with 80T static lifting capacity.
Floor Thickness6mm
Body Thickness5mm
Brake SystemDual Lines Braking System With Automatic Air Chambers
Brake Air ChamberFour double and two single chamber
Electrical System24V, 7core socket, lights according to European standards.
Mainbeam SizeUpper plate14mm
Lower plate16mm
Mid Web8 mm
Height500-520mm
Tool Box1 box of standard tools
Spare tire carrier2 sets
Color and LogoDepends on the buyer’s requirement.
Pin HeightAccording to the height of the tractor saddle.
PaintingThree coats painting; Any color will be available
Hydraulic CylinderHyva
ApplicationFor Coal. Ore. Sand. Stone. Grain Transport
