Detail

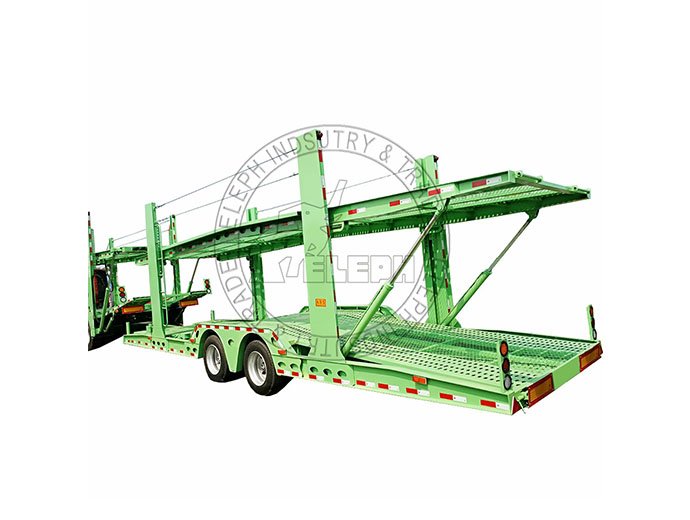

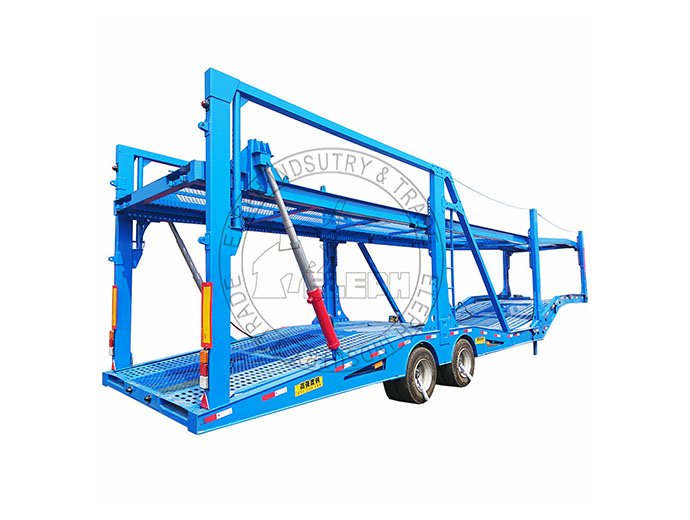

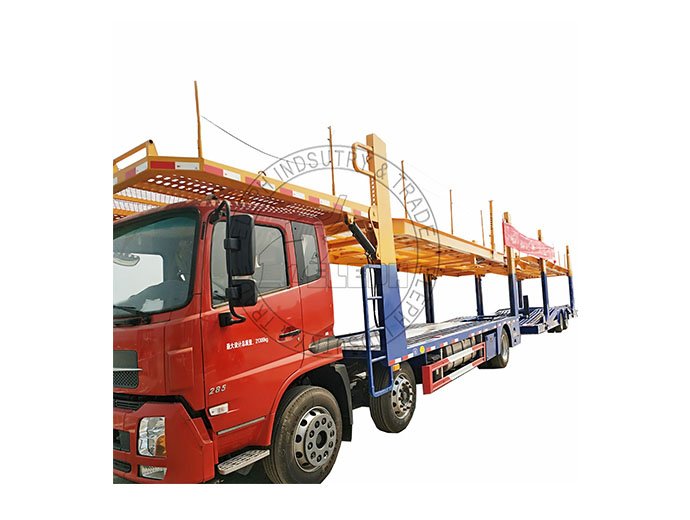

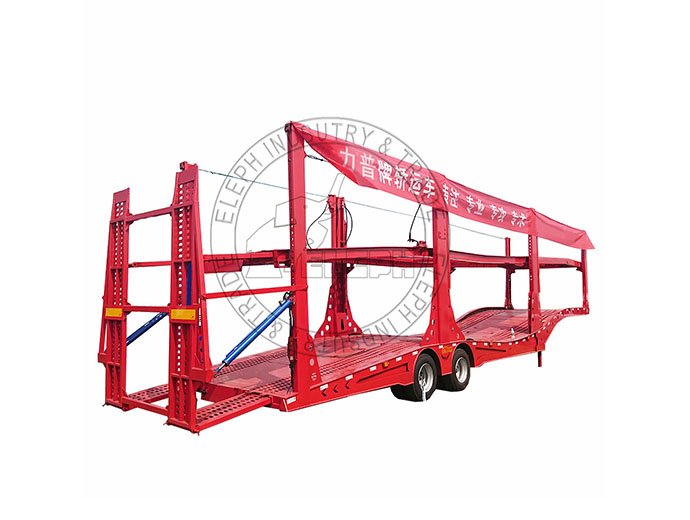

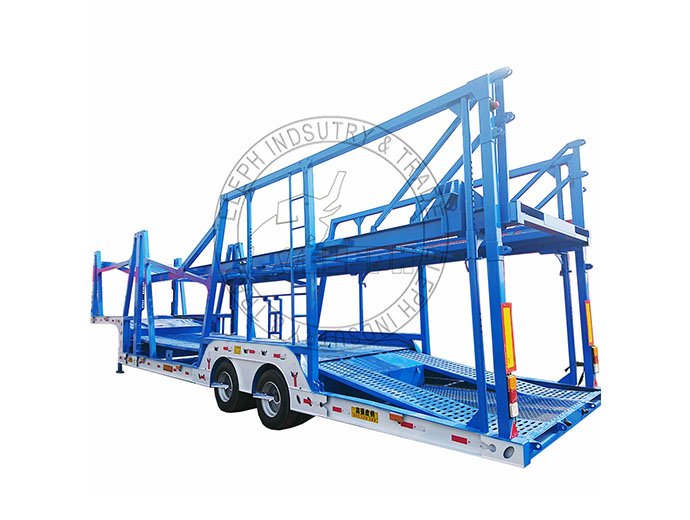

Cars Transportation Hydraulic Loading Truck Semi Trailer
SizeAxle NoRating CapacityTire QtyTire Model
6 Cars Loading2 Axles30Tons4/8 sets825R20;10.00R20;11.00R20;12R22.5
10 Cars Loading3 Axles40-50Tons6/12sets825R20;10.00R20;11.00R20;12R22.5
More than 10 cars4 Axles60Tons8/16sets825R20;10.00R20;11.00R20;12R22.5
Rear tread(mm)1840/1840
Outside Dimension L×W×H14800-21000x2400x3000 mm
Main  FrameQ345B manganese plates, automatic submerged arc welded
FloorSteel Sheet 3mm thickness or diamond plate
SuspensionSteel leaf spring suspension system
Rated load30-50 T
Pin Size2' and 3.5' inter-changeable Pin
Spare Wheel CarrierOne set of spare wheel carrier including a riser.
Braking System2-Line compressed air brake system on all wheels with additional parking brake.
Brake Air ChamberAutomatic Air Chambers
Electrical  System1.  Voltage: 24v    2.  Receptacle: 7 ways(7 wire harness)
AccessoryOne tooling box with a set of standard trailer tool
Landing gearCapacity of 28ton,factory brand
Lights System

LED electrical system to international standards includes taillights,

 sidelights and direction indicators.

Loading CapacityTwo floors,
