Detail

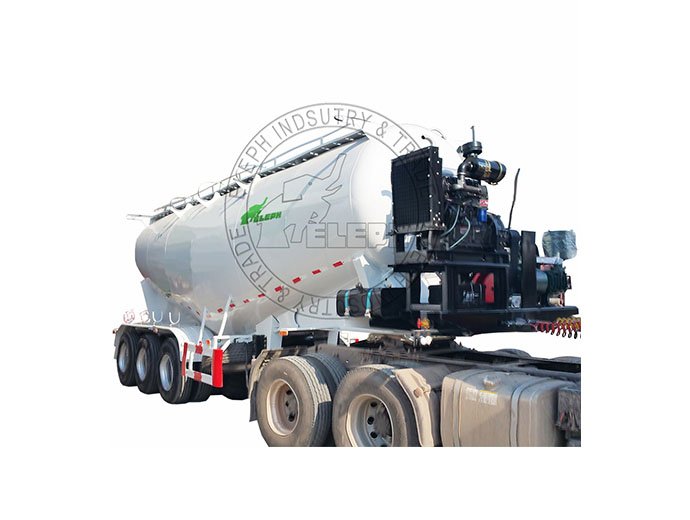

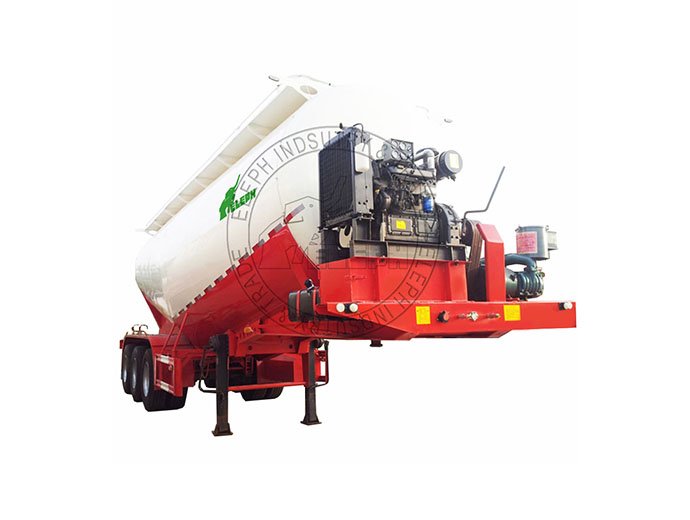

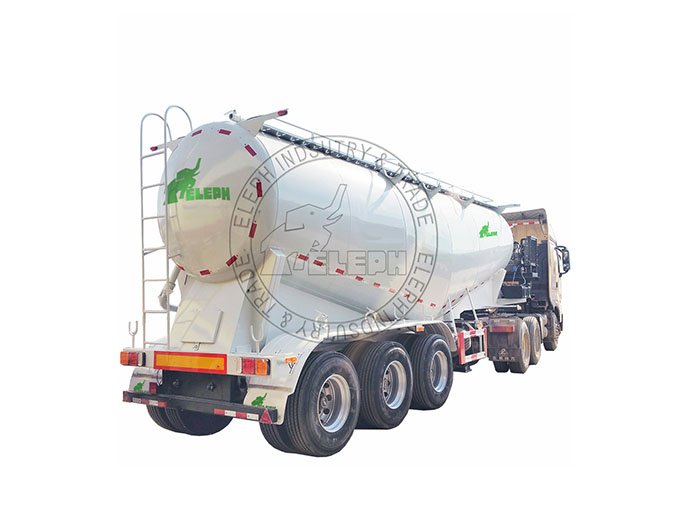

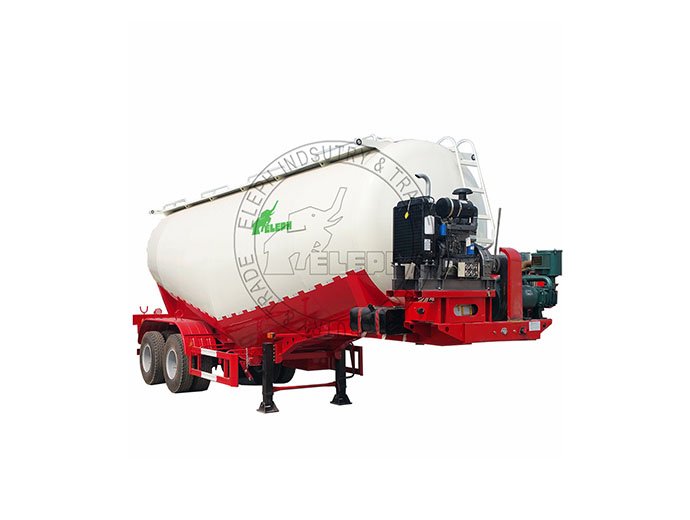

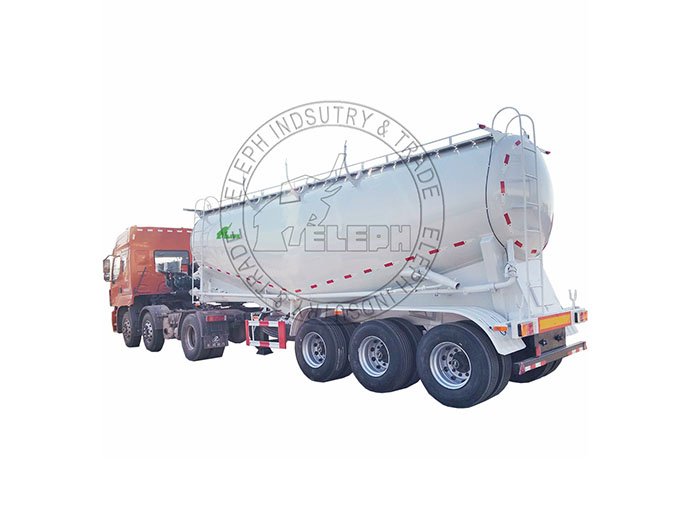

Bulk Cement /Powder Tank Truck Trailer
ModelALP9350PTAT
Dimension(Optional)Axle No.Rated Load (kg)Tire No.Tire Size
10000-30000liters/10-30cbm2400008

825R20 1000R20 1100R20 1200R20 12R22.5

 (Other Size / Single Super Tire Contact with Supplier)

30000-60000liters/30-60cbm36000012
Above 60000liters/60cbm47500016
ManufactureQingdao Eleph Industry & Trade Co., Ltd
Wheel Base  (mm)1310
leaf-spring Pcs10
Axle13/16/18 T
SuspensionHeavy Duty Mechanic Suspension with Leaf Springs
Main Beam MaterialQ345B manganese plates, automatic submerged arc welded
Brake SystemDual line braking system with automatic braking system/chambers
Brake Air ChamberDouble Model
Kingpin2' or 3.5' Interchangeable
Landing gear28T loading capacity with 80T static lifting capacity.
Tanker body5mm Q235B Steel
Brake SystemDual Lines Braking System With Automatic Air Chambers
Brake Air ChamberFour double and two single chamber
Electrical System24V, 7core socket, lights according to European standards.
Mainbeam SizeUpper plate14mm
Lower plate16mm
Mid Web8 mm
Height500-520mm
Tool Box1 box of standard tools
Spare tire carrier2 sets
Color and LogoDepends on the buyer’s requirement.
Pin HeightAccording to the height of the tractor saddle.
PaintingThree coats painting; Any color will be available
Manhole2pcs
Body MaterialCarbon Steel/ Stainless Steel/Aluminium
LaddersSteel with anti slipper walking way

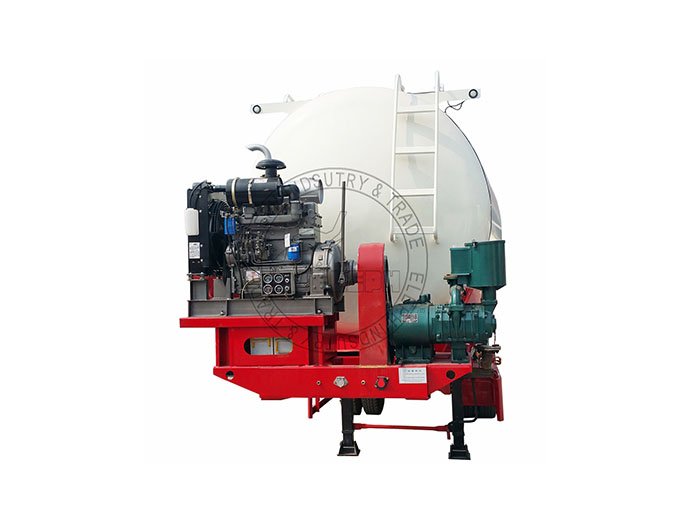

Air Compressor4102 with diesel engine/ pump
handrailSteel, manual
ApplicationFor Powder/Cement Powder Transportation
