Detail

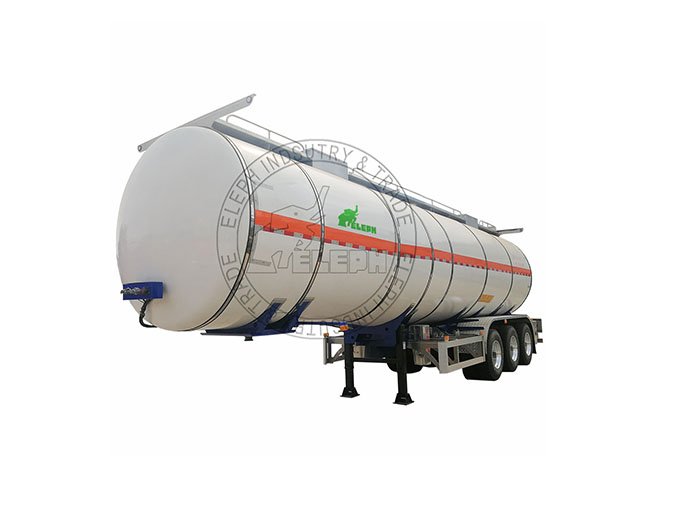

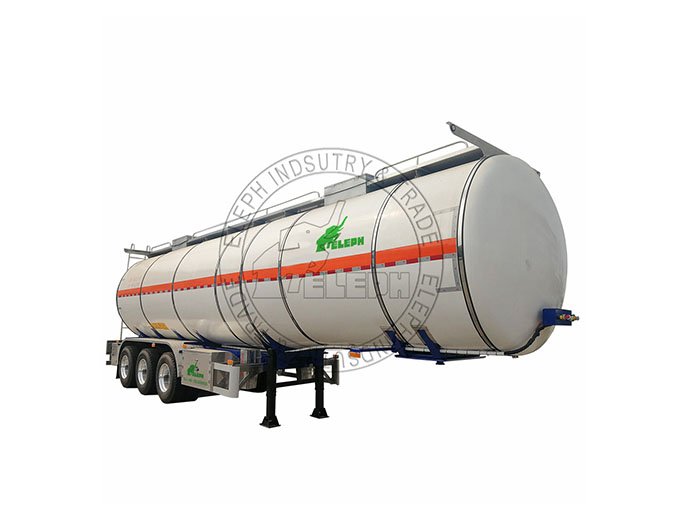

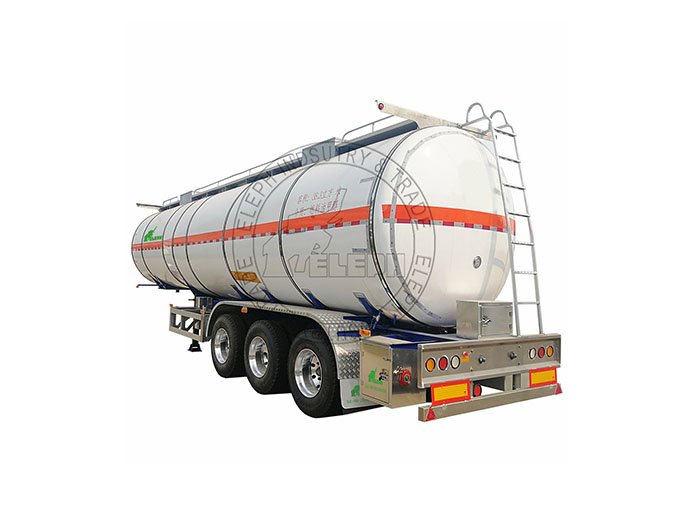

Tank Body
ShapeOptional (Round or Square)
Dimension12000mm*2490mm*3990mm
Tare WeightAbout 8000Kg-12800Kg
Total Volume(m3)40m3
Tanker Body Material5mm or 6mm /Q235 carbon steel
End Plate5mm or 6mm/Q235 carbon steel
Manhole CoverCarbon steel or Aluminum alloy API manhole cover ,500mm
Bottom VolumeAluminum API Pneumatic Bottom Valve
Discharging ValveDiameter is 3 or 4 inch
CompartmentsOptional
Discharging Pipe4” rubber hose,2 pcs,6m/each
Cat WalkWith (Common model or special design)
Chassis
Main Beams

Welding design or special design I beam

,connected by bolts and nuts Q345 carbon steel material

Axle2 or 3 axles, BPW/FUWA/JINSHENG brand
Landing GearJOSTD200T or China brand 28T
King PinJOST 2.00 OR 3.5 inch bolt-in king pin
SuspensionMechanical suspension(Germany or American type)/air suspension
Leaf spring90mm*130mm*10 or 100mm*12mm*12
Pneumatic Braking SystemWABCO RE 6 relay valve; Spring brake chamber
Rim9.00-22.5/8.00-20/8.5-20 China brand
Tire12R22.5;315/ 80R22.5;11.00R20;12.00R20;
ABSOptional
Painting

Complete Chassis and blasting to clean rust

,1 coat of anticorrosive prime,2 coats of final paint

AccessoriesOne standard tool lox
