Container Side Loader

BACK

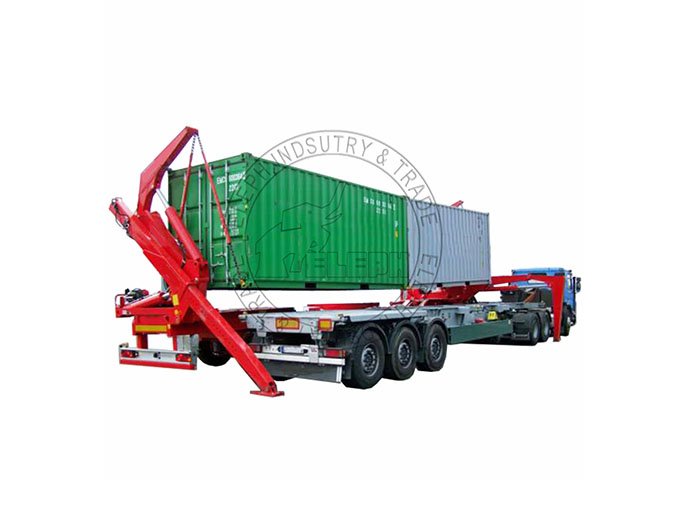

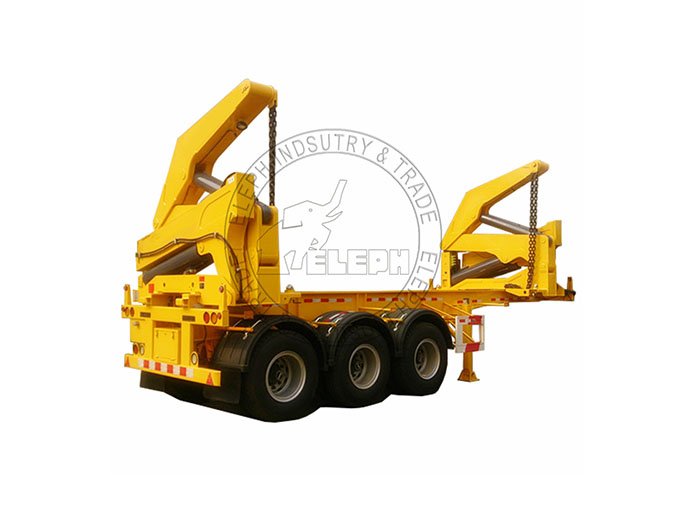

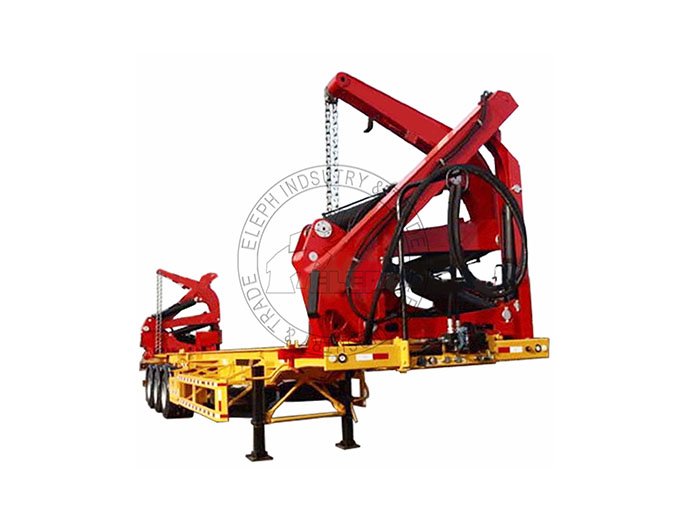

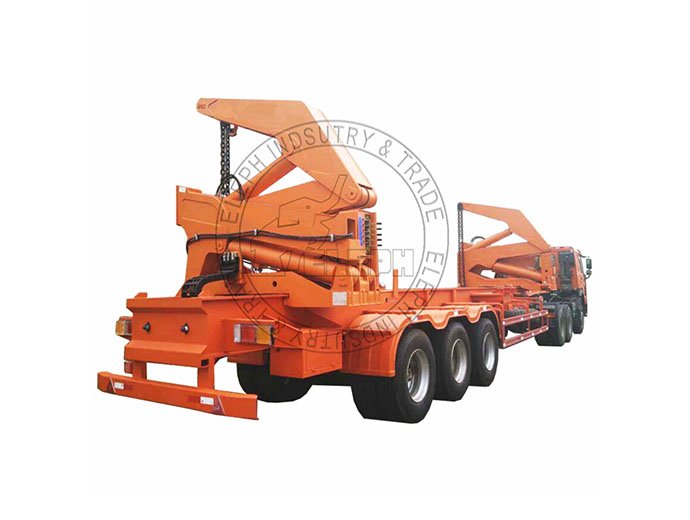

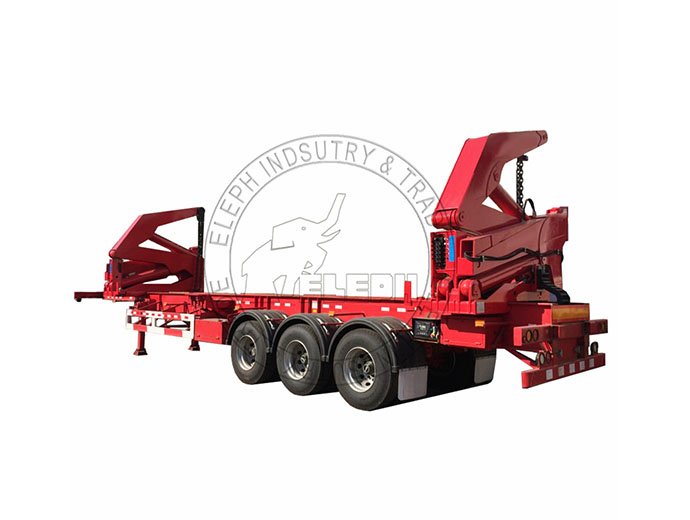

Container Side Lifter Semi Trailer
Max. lifting capacity	kg	37000
Max. working range	mm	4000
Max. stabilizer outreach	mm	3200
Curb mass	kg	14500
Mass of sidelifter	kg	7250
Maximum gross mass	kg	40000
Outline dimension of semi-trailer(L×W×H)	mm	14100×2500×4000
Outline dimension of side-lifter(L×W×H)	mm	1020×2500×2490
Wheel base	mm	8000+1350+1350
Track(front axle/rear axle)	mm	1820/1820/1820
Front overhang / Rear overhang	mm	-/2370
Approach angle/Departure angle	°	-/13
Power/rotation speed	kW/r/min	36.5/2600
Emission standard	——	Off-road, Euro III
Trailer	Loading deck	skeleton kind
Trailer Dimension	Overall	14100x2480x1510mm empty load
Loading weight	kgs	50000
Wheelbase	mm	1350
Tire	sets	13/11.00r20
Braking	Pneumatic	ABS
