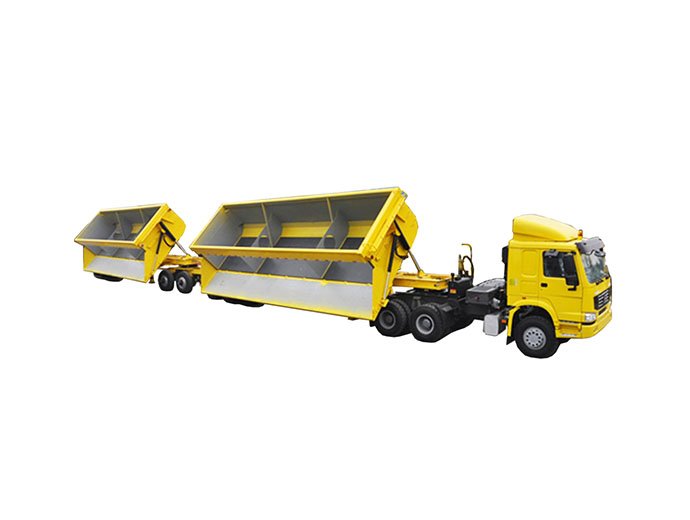

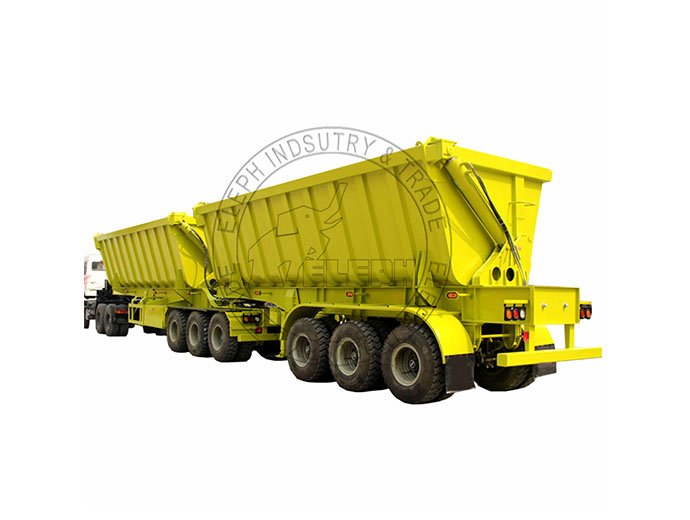

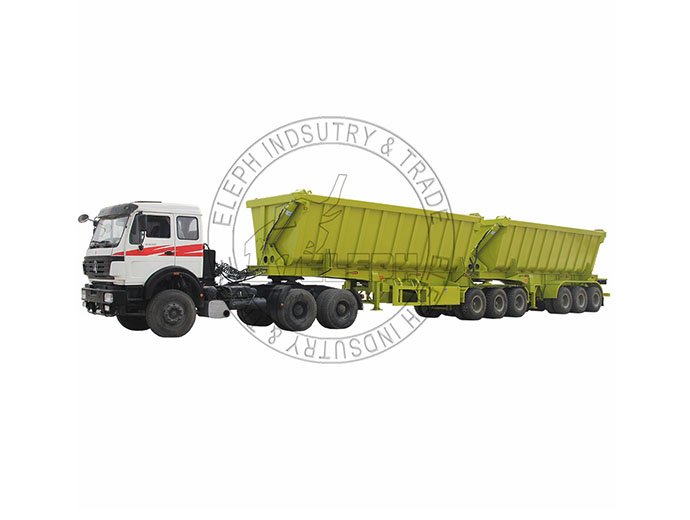

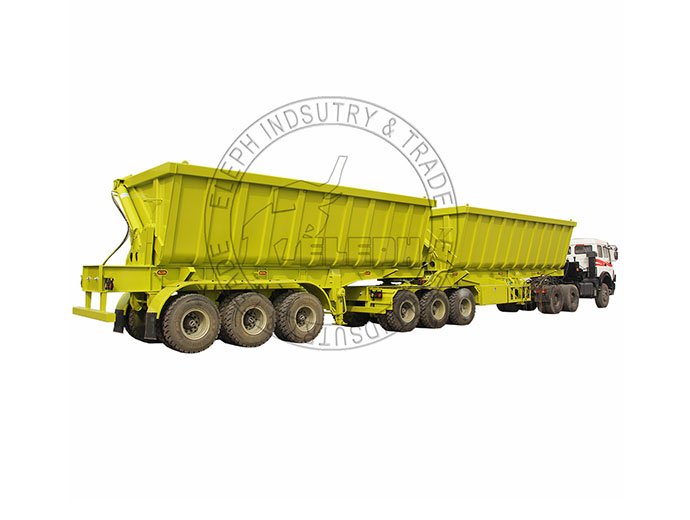

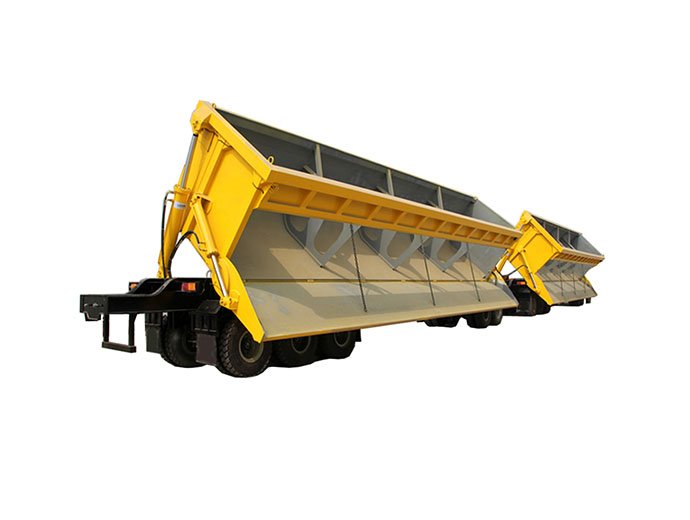

Double Tipper Semi Trailer
Axle No.		Axle Location		Tire No.	Length	Rating Capacity
1		Rear		4	4000-7500mm	15Tons
2		1+1		8	7500-12500mm	40Tons
3		1+2		12	12500-15000mm	60Tons
4		2+2		16	15000-18000mm	80Tons
Suspension：			America type mechanical Suspension
	Wheel		11:00 R20
	Turntable		Diameter is 1100mm
	Traction hook		DN50
	Traction bar		Length is 1.4m
	Dimensions(LxWxH)		7500-18000×2500×1500mm
	Steel Spring		10/10 pieces per axles
Tire:
	The material of Main beam		The height of the beam is420mm,upper plate is 12mm140 ,down plate is 12140mm,middle plate is 6mm(strictly).made of Q345
	Platform plate		3mm Diamond Plate
Brake:			WABCO VALVE
	Brake		Kemi Brand of China
	Brake Chamber		TWO double and two single chamber( TKL brand )
	ABS system		with
Electrical:
	Voltage		24V
	Receptacle		7 ways(7 wire harness)
Light color:			(LED light)
	Side marker lamp		Orange
	Rear lamp		Red
	Turn signal lamp		Orange
Miscellaneous:
	Painting		Can be choose freely
	Marking		According to the requirement of the buyer
	Side Guard		According to the requirement of the buyer
	Tools box		One pieces or According to the buyer(1m length)
	Water tank		The size can be choose freely.
