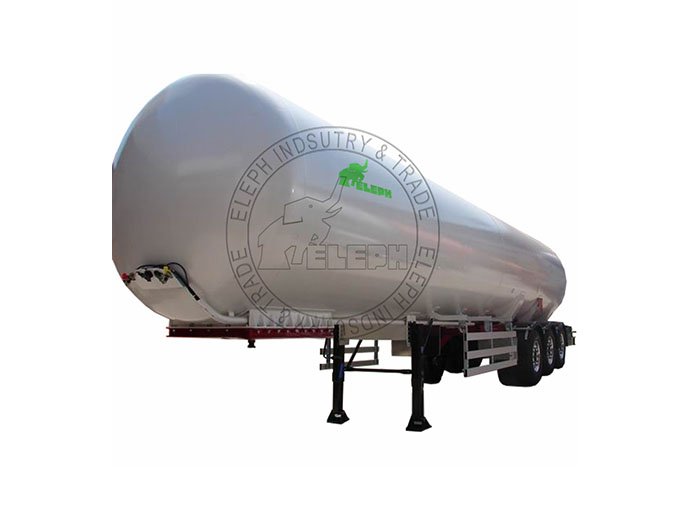

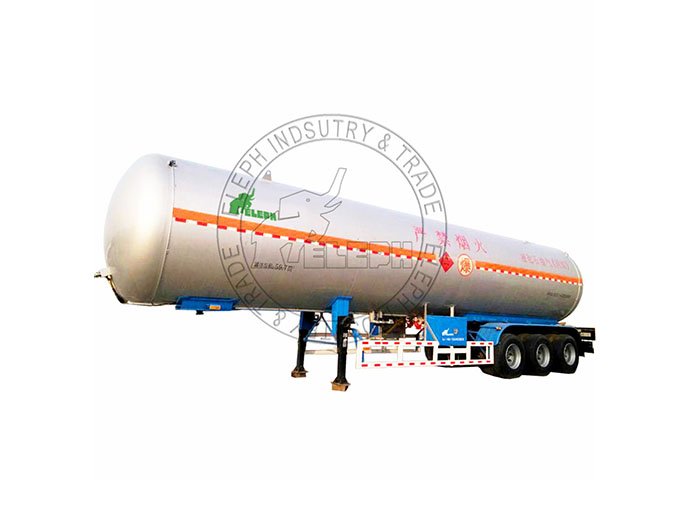

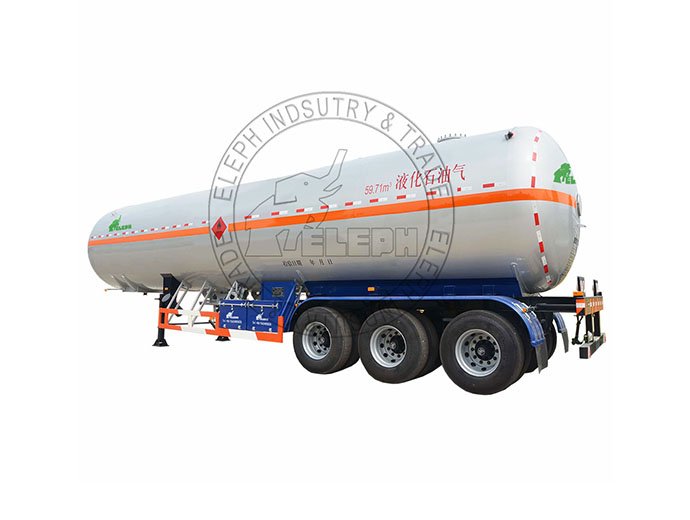

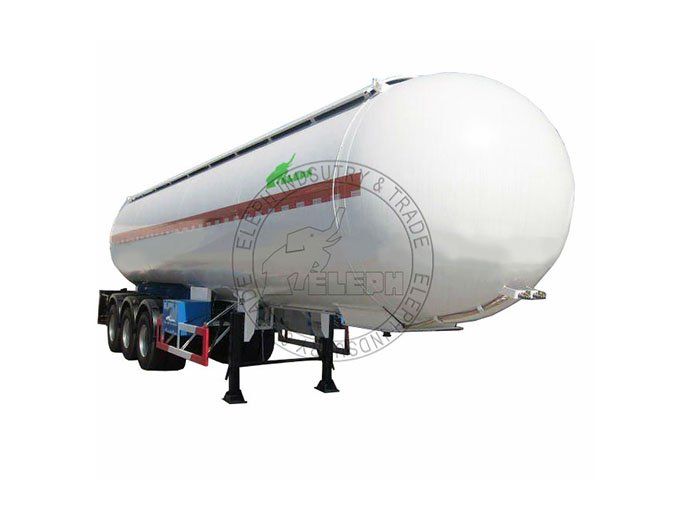

LPG TRANSPORT TANK TRUCK TRAILER
ModelALP9350LTGT
Dimension(Optional)Axle No.Rated Load (kg)Tire No.Tire Size
10000-30000liters/10-30cbm2400008

825R20 1000R20 1100R20 1200R20 12R22.5

 (Other Size / Single Super Tire Contact with Supplier)

30000-60000liters/30-60cbm36000012
Above 60000liters/60cbm47500016
ManufactureQingdao Eleph Industry & Trade Co., Ltd
ProductsLPG, Butane , Propane
Fluid propertyflammable
Design temperature            -40°C to 50°C
Design pressure               1.61MPa
Filling weight per volume   420Kg/m3
Maximum filling weight       24486Kg
CompartmentsOne
Baffle inside the tank14-off bolted plate , 5mm
ShapeCylindrical ; Ellipse head
Fire extinguisher2 With red box
Flaw detection100% Flaw detection
Hydrostatic test2.1MPa
Manhole1 ; On top
Safty Valve1
Suspension systemLeaf spring 10pcs
Landing legs28Ton
7-Pin Socket24V 7-pin socket
LED LampAll kinds of lamp
Kingpin90 and 50# Bolt-atble
Small Tool box1
Wheel carrier1
Corrosion allowance1.0mm
MagnafluxAim at welding place flaw detection can not cover
Heat treatmentOverall heat treatment in a furnace , 500°C to 560°C
Major materials bearing pressure

Tanker body : Q345R , 12.5mm,End plate : Q345R ,

 front10mmRear:12.5mm ,Main Beam : T700
