Gold hofer THPSL Modular Trailers

BACK

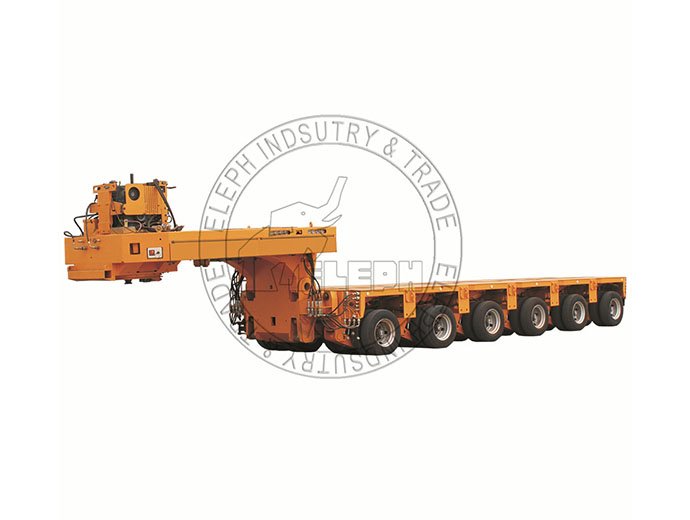

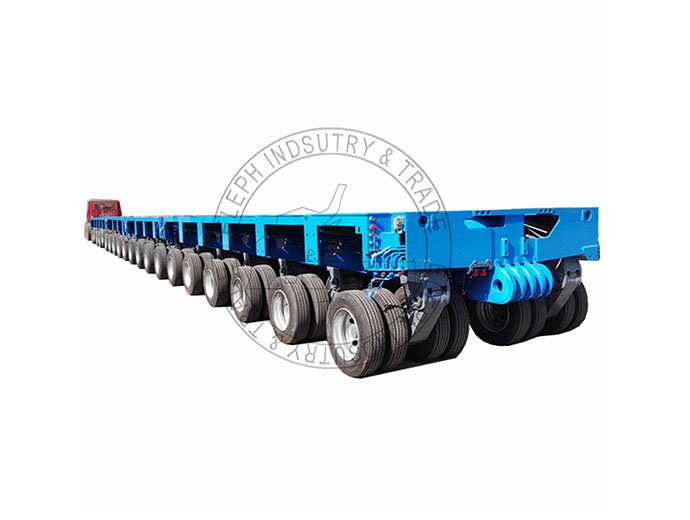

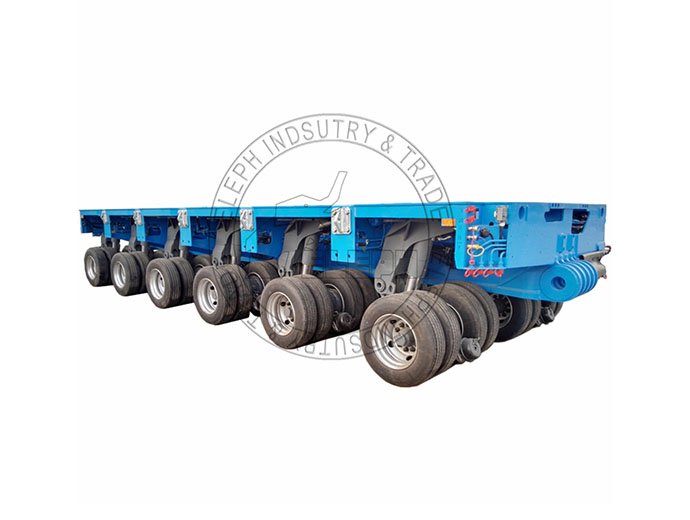

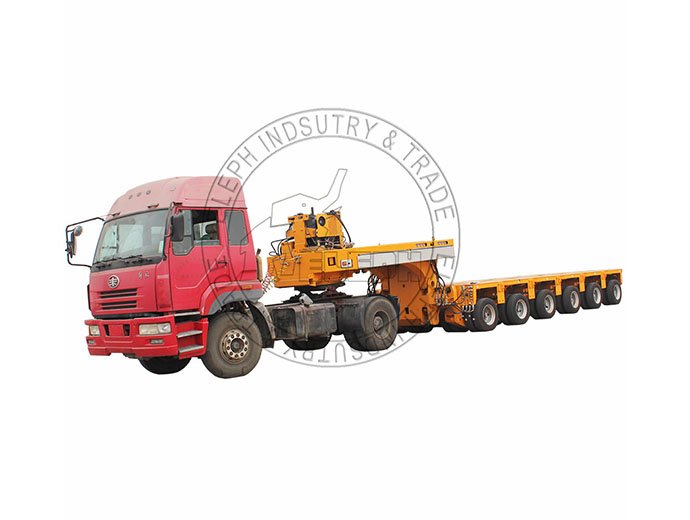

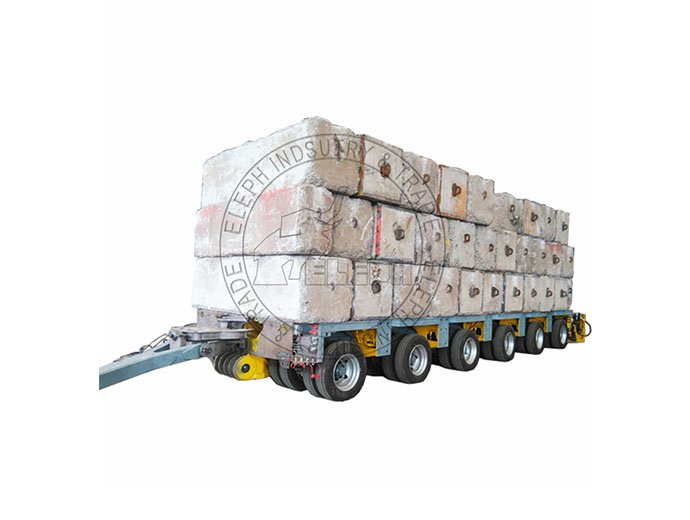

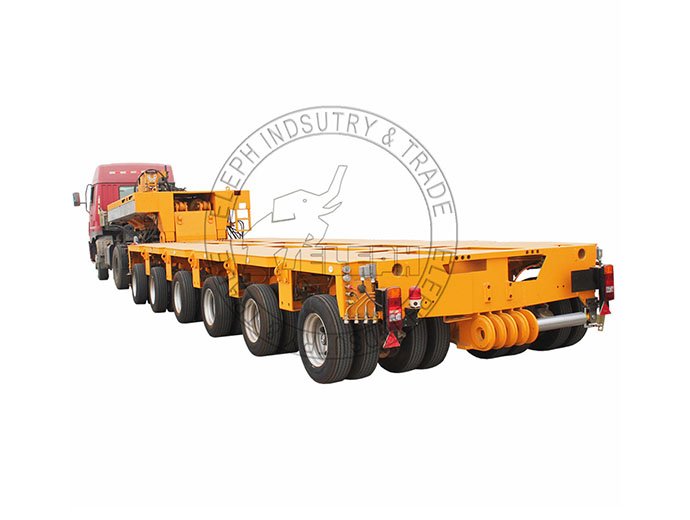

ELEPH Manufacture Goldhofer THP/SL PST/SL model Modular Trailer can be Fully Compatible with the original Germany Goldhofer THP/SL, capacity 45 tons/axle line, 1,175 ± 300 mm height and 2,990 mm width, axle base 1,500 mm with S690high tensile structure steel, robust and durable construction with high bending moment, high concentrated load bearing capacity.

Detail

ALP9000QB MULTI-AXIS HYDRAULIC TRAILER
Number of Axle-line(n)	2		3		4		5		6
Speed(km/h)	5	80	5	80	5	80	5	80	5	80
Total weight(t)	68	32.8	102	49.2	136	65.6	170	82	204	98.4
Rated Payload(t)	61	25.8	91.5	38.7	122.8	52.4	152.5	64.5	183	77.4
Dead Weight(t)	7		10.5		13.2		17.5		21
Load Per Axle Line(t)	34	16.4	34	16.4	34	16.4	34	16.4	34	16.4
Total Length(mm)	3000		4500		6000		7500		9000
Total Width(mm)	3000
Height(mm)	1175±300
Axle Distance(mm)	1500
Wheels Distance(mm)	1800
Tyre Specification	215/75R17.5
Rim Specification	6.00-17.5
Number of Tyre	16		24		32		40		48
Max.Turning Angle of Wheel	55°
Min.Turning Radius(mm)	inner 450		inner 1500		inner 2600		inner 1500		inner 2000
	outer 4070		outer 5800		outer 7600		outer 5800		outer 6700
