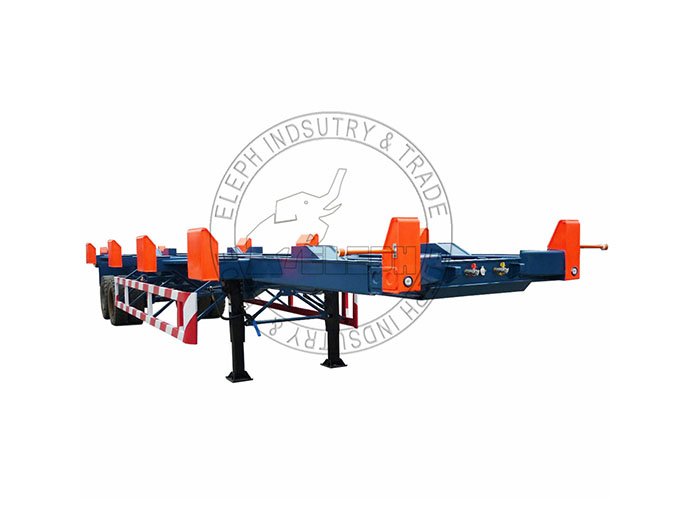

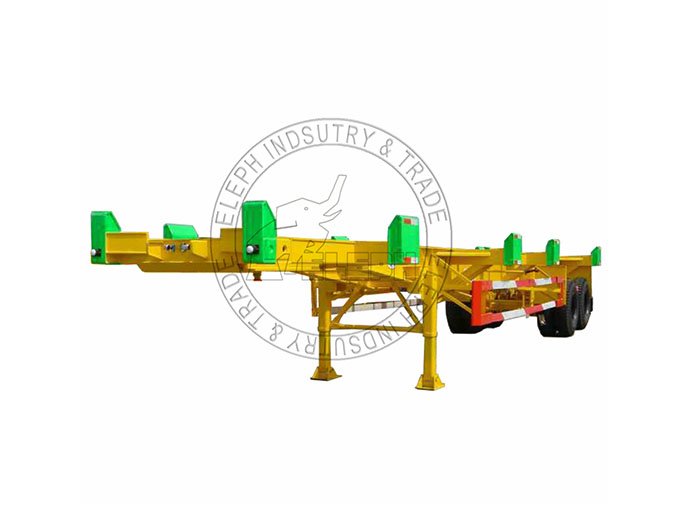

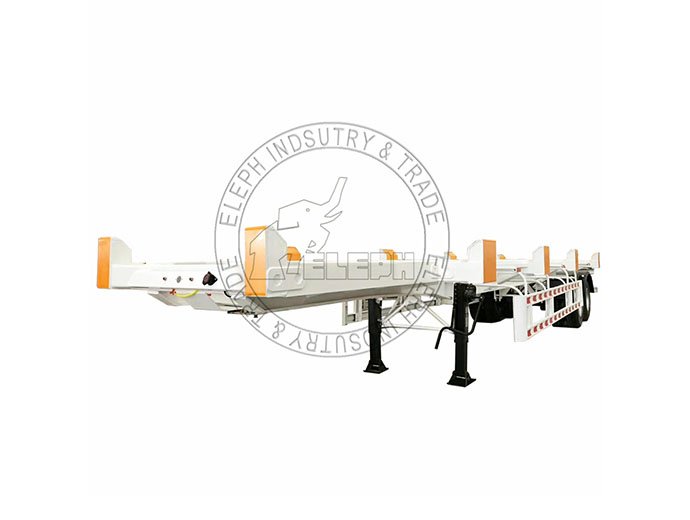

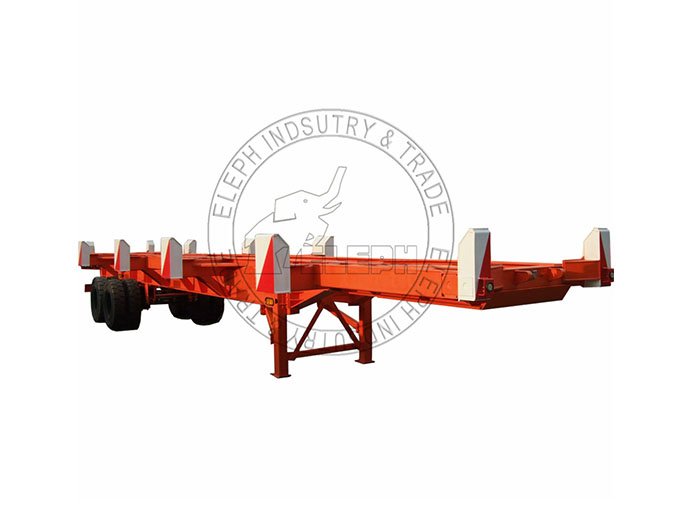

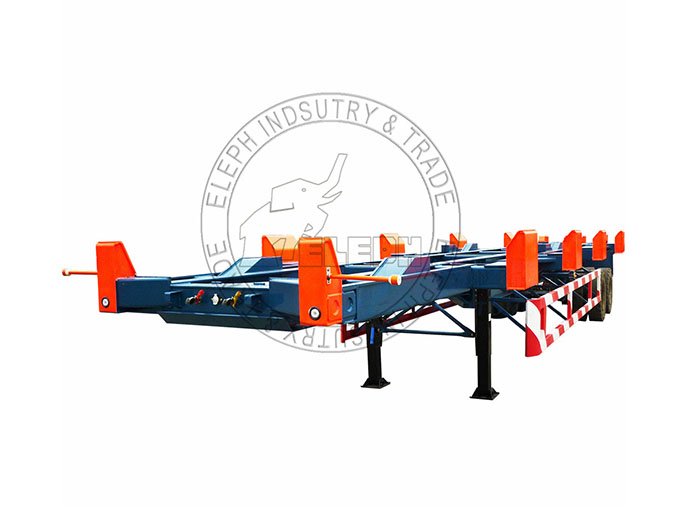

Container Transport Terminal Trailer
ModelALP9350SKCST
Dimension(Optional)Axle No.Rated Load (kg)Tire No.Tire Size
20ft2400008

825R20 1000R20 1100R20 1200R20 12R22.5

 (Other Size / Single Super Tire Contact with Supplier)

40ft 45ft 48ft 53ft36000012
40ft 45ft 48ft 53ft47500016
ManufactureQingdao Eleph Industry & Trade Co., Ltd
Wheel Base  (mm)1310
leaf-spring Pcs10
Axle13/16/18 T
SuspensionHeavy Duty Mechanic Suspension with Leaf Springs
Main Beam MaterialQ345B manganese plates, automatic submerged arc welded
Brake SystemDual line braking system with automatic braking system/chambers
Brake Air ChamberDouble Model
Kingpin2' or 3.5' Interchangeable
Landing gear28T loading capacity with 80T static lifting capacity.
PlatformSkeletal Chassis Loading Deck
Brake SystemDual Lines Braking System With Automatic Air Chambers
Brake Air ChamberFour double and two single chamber
Electrical System24V, 7core socket, lights according to European standards.
Mainbeam SizeUpper plate14mm
Lower plate16mm
Mid Web8 mm
Height500-520mm
Tool Box1 box of standard tools
Spare tire carrier2 sets
Color and LogoDepends on the buyer’s requirement.
Pin HeightAccording to the height of the tractor saddle.
PaintingThree coats painting; Any color will be ok
Other Specifications

The frame can be flat plate style and skeleton style.Twist lock settings installed 12 pics,

 8 pics, and 4pcs to satisfy the containers with different sizes for convince.

ApplicationFor 2x20ft or 1x40ft containers transport
