Detail

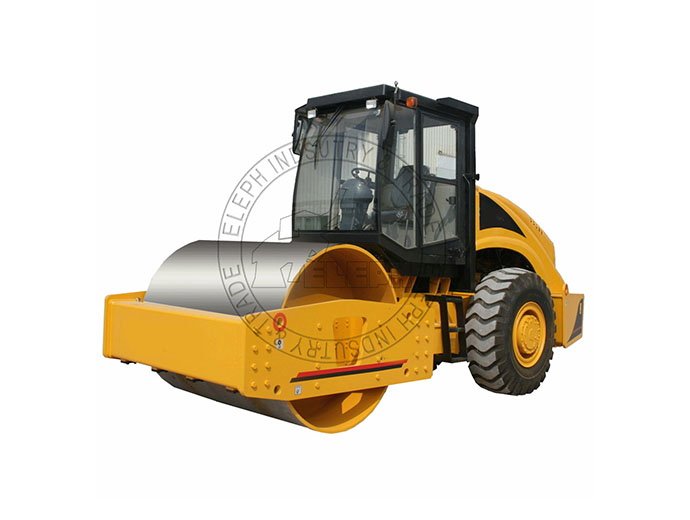

ITEMSR12-5
 WeightsOperating weight(Kg)12300
Axle load,drum(Kg)7100
Axle load,wheel(Kg)5200
Static linear load,(at drum)(N/cm)325
Drum and TiresMax.Working width(mm)2140
Drum diameter(mm)1550
Drum shell thickness(mm)30
Number of padfeet-
Height of the padfoot(mm)-
Tire size23.1-26-8PR
Vibratory SystemFrequency,(HZ)-
High amplitude30
Low amplitude33
Nominal amplitude(mm)-
High1.8
Low1
Centrifugal force(KN)-
Maximum270
Minumum180
Drive TrainForward speed(km/h)0-5.3

0-9.9
Reverse speed(km/h)0-5.3

0-9.9
Max. Climbing ability(%)48
Drive systemHydrostatic
Power Trainmake&modelWeichai DEUTZ WP6G140E22
TypeTurbocharged
FuelDiesel
CoolingWater
Number of cylinders6
Rated power(kw)105
Rated speed(rpm)2200
Electrical SystemDC,negative ground(V)24
Alterntor(VA)28V,55A
Batteries-
BrakesService brakeHydrostatic
Parking brakespring-loaded/ mechanical
SteeringSteering systemOscillatiing, articulating
Steering methodHydrostatic
Steering angle(Grad)±36°
Oscillating angle(Grad)±12°
Machine DimensionsOverall length(mm)6021
Overall width(mm)2362
Overall height(mm)3127
MiscellaneousMin. Turning radius(mm)5500
Fuel capacity(L)240
