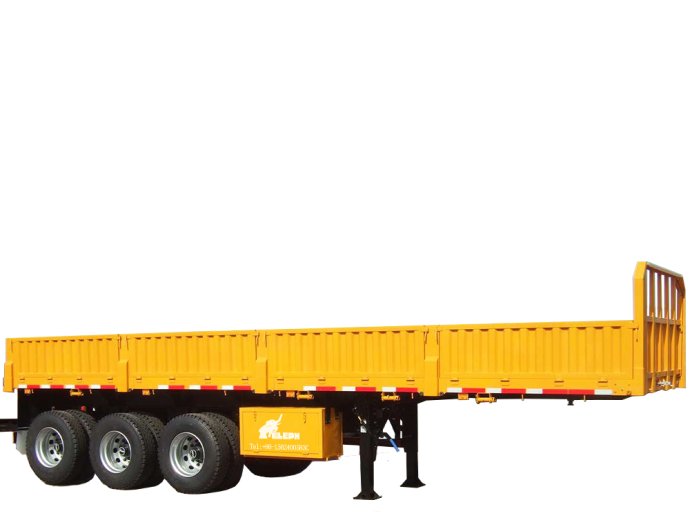

Sidewall Flatbed Semi Trailer

BACK

According to client's speical requests for trailer, we can design full set drawings for clients.

The material of trailer frames is high quality and strength steel that can extend the using life of trailer.

It has been designed appropriately according with clients requirements, such as dimension, payload, main beam and so on.

Brake system and Electric system are well-known brand in the world.

Shot blasting twice and particular coat painting can guarantee the quality of trailer surface.

All componenet/configuration (OEM parts) can be arranged based on clients detailed requirements and meet clients need.

Manufacture	Qingdao Eleph Industry & Trade Co., Ltd
Model	ALP50TJZG
Axle NO	3 pcs
Wheel Base	7380+1320+1320 (mm)
Outside Dimension	12450X2500X1580 L×W×H (mm)
Tyre specifications	12.00R20 14PR Radio Tire
Tyre No	12
leaf-spring Pcs	12 pcs
Axle load	13 T
Suspension	Mechanic Heavy Duty Leaf Spring Suspension
Material & Thickness	main beams Q345B/ST52-3 / through cross beams Q235 / Main beam Height: 500 mm / Upper flange : 14mm / Mid web : 8 mm / Lower flange: 16mm Side Beam: 160 mm
Brake System	Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber.
Electrical System	24V, 7core socket, lights according to European standards.
Payload	50Tons
Head Wall	1200mm
Tool Box	1 box of standard tools
Spare tire carrier	1 set
Color and Logo	Depends on the buyer’s requirement.
The traction pin	3.5’ or 2’
Pin Height	According to the height of the tractor saddle.
Tare Weight	6.9 Tons
Floor	4mm diamond plate
