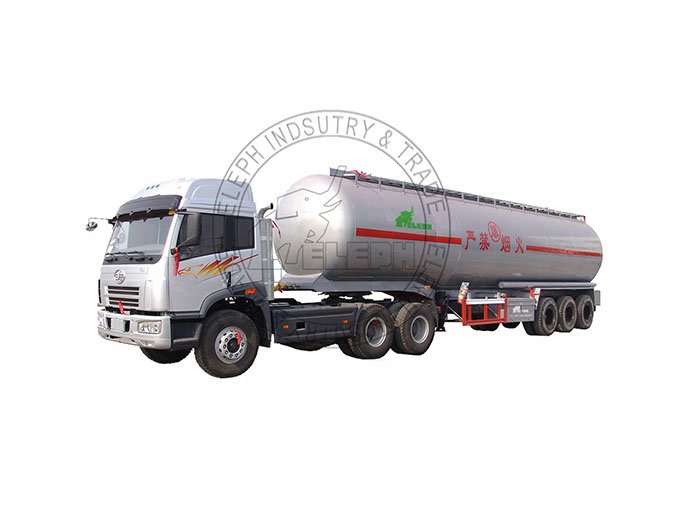

Stainless Tank Semi Trailers

BACK

Technical Specification
Weight Rating（kgs）			Curb Weight	8,000
			Payload	32,000
			Total Weight	40,000
Dimension(mm)		Trailer	Overall Length	10800
			Overall Width	2500
			Overall Height	3850
		Wheel base		1300mm/1350mm
Tank Body Assembly
Shape			gooseneck/ square round circle
Total Volume (m3)			32 m3
Valid Volume (m3)			30 m3
Compartment			1
Material	Tank shell		SUS304/5mm
	Dish end		SUS304/6mm
	Baffle		SUS304/4mm
Spoil box			Stainless steel
Manhole flange			SUS304/5mm, 20 inch manhole
Manhole cover			3 sets of 500mm/ SUS304 manhole fixed on top of Tank, with breather valve
Piping system			3 sets of 4’ stainless steel pipes under tank body
Discharge valve			3 units of gate valve and emerges valve fixed at bottom of Tank
Chassis
Main beam			Heavy duty and extra durability designed; Opting for high tensile stainless steel Q345B ,welded by automatic Submerged-Arc processes
Landing Gear			Two Speed Manual Operation
King Pin			One unit of 2” /3” standard bolt type king pin
Running Gear
Suspension			mechanical suspension with leaf spring
Pneumatic brake system			Emergency brake and parking brake;
			Dual line - air brake, piggyback spring on all axles;
			One unit of WABCO RE 6 relay valve;
			Six units of T30/30 chamber;
			one unit of 40L air tank ;
Axle			3 sets of Fuwa axles
Wheel rim			13 units of 9.00*22.5 rim
Tire			13 units of 315/80 22.5 tire Triangle brand
Painting
Preparation			Sand blasting processing on rust cleaning before painting
Primer layer			One coat of anticorrosive paint
Final coat			Two coats of finish paint
Color			As customer’s requirements
