Detail

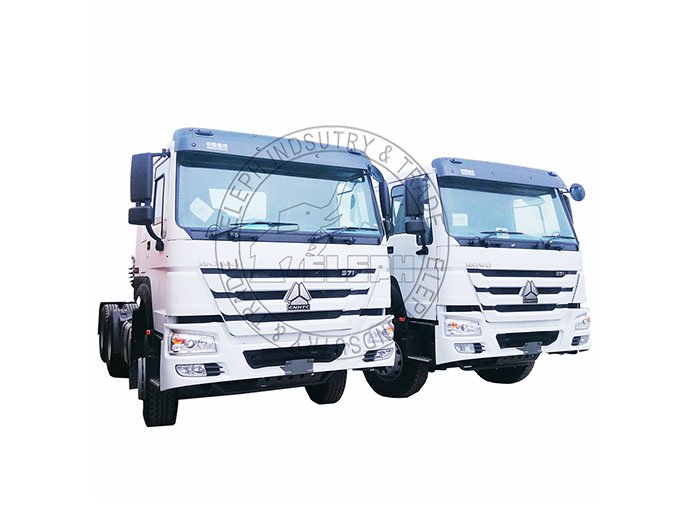

Sinotruk Howo HP 371  Tractor truck

Weight ParameterComplete Vehicle Kerb Mass(kg)12420
Maximum authorized total mass (kg)25000
Maximum authorized towed total mass(kg)
Dimension ParameterExternal Dimensions(mm)Length10525
Width2496
Height3450
wheelbase(mm)5225+1350
Minimum Ground Clearance(mm)314
Performance ParameterMaximum Speed(km/h)75
Economical Speed(km/h)60
Maximum Grade ability(%)70
Turning diameter(m)22
Recommended ConfigurationEngineEngine Type

WD615.95E,WD615.95C

,WD615.96E,WD615.96C

Rated power(kW)/Rev(r/min)

247/2200 ,249/1900

,276/2200 ,279/2000

Maximum Torque(N*m)/Rev(r/min)1350/1100-1600 1490/1200-1500 1500/1100-1600 1590/1200-1500
TransmissionHW15710
Clutch(mm)430
Rear AxleTypeHC16
Speed Ratio5.73 5.45 4.77
Fuel Tank(L)300
Chassis Cross-section(mm)300
Suspension(Front,Back)10/12,10/-
Tire11.00-20,11.00R20,12.00-20,12.00R20


Sinotruk Howo HP 375  Tractor truck

Weight ParameterComplete Vehicle Kerb Mass(kg)8800
Maximum authorized total mass (kg)25000
Maximum authorized towed total mass(kg)2,980,033,200
Dimension ParameterExternal Dimensions(mm)Length6800
Width2496
Height2,958,371,835,633,660
wheelbase(mm)3225+1350,3200+1400
Minimum Ground Clearance(mm)260
Performance ParameterMaximum Speed(km/h)90,102
Economical Speed(km/h)72,82
Maximum Grade ability(%)35
Turning diameter(m)15
Recommended ConfigurationEngineEngine Type

WD615.92,WD615.93,WD615.92E,WD615.93E

,WD615.92C,WD615.93C,WD615.97C,WD615.97E

Rated power(kW)/Rev(r/min)

196/2200 213/2200 196/2200 213/2200

 198/1900 213/2200 221/1900 221/1900

Maximum Torque(N*m)/Rev(r/min)1100/1100-1600 1160/1100-1600 1100/1100-1600 1160/1100-1600 1190/1100-1600 1290/1100-1600 1290/1100-1600 1160/1100-1600
TransmissionHW15710
Clutch(mm)430
Rear AxleTypeHW16
Speed Ratio3.73
Fuel Tank(L)400
Chassis Cross-section(mm)300
Suspension(Front,Back)9/12,4/12,4/-,9/-,3/12,3/-,3/5
Tire

11.00-20 18PR,11.00R20 16PR,12.00-20 16PR

,12.00R20 14PR,315/80R22.5 16PR
