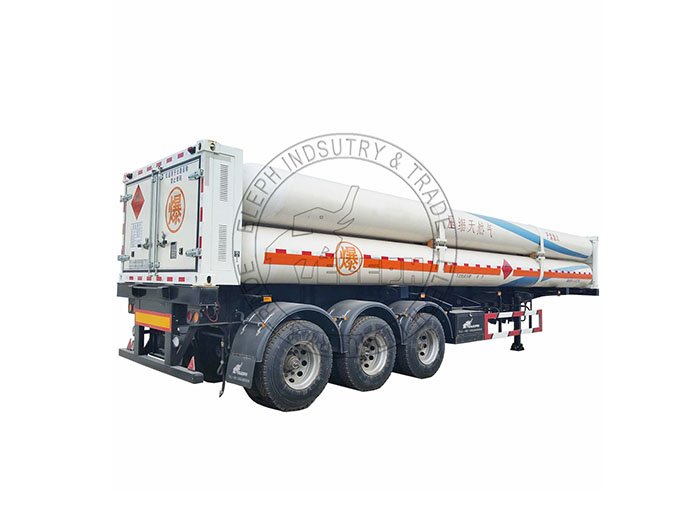

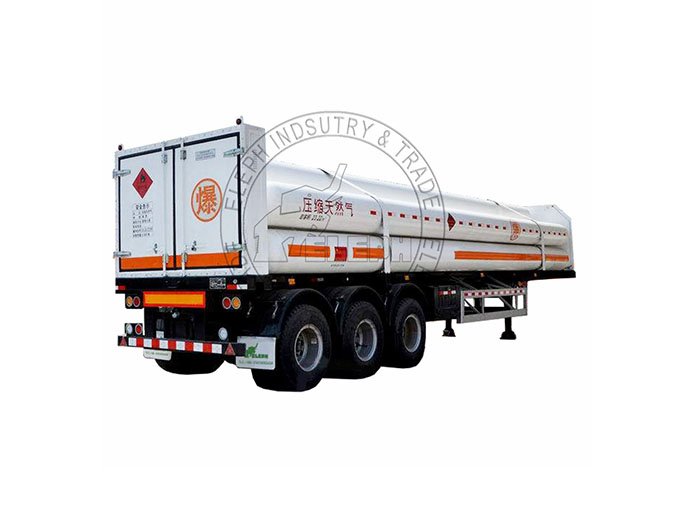

CNG Tank Semi Trailer

BACK

Item	Data	Cylinder	Item	Data
Type	GSJ10-2450-CNG-25		Working pressure	25MPa
Container quality	28800Kg		Working temperature	-50~65℃
Filling quality	5512Kg		Main material	30CrMoLX
Rated weight	34312Kg		cylinder QTY	10
Major risk category	2.1		Total volume	24.5M3
UN code	1049		Pressure for water pressure test	37.5MPa
Filling medium	CNG		Dimension(mm)	559x14.8x11580
Gas tightness test pressure	25MPa		Design temperature	65℃
Pipeline water pressure test pressure	37.5MPa		Medium property	Explosive
Filling amount	7717Nm3	Bursting discs	Burst pressure	37.5MPa
Dimension (mm)	12192x2438x1890		Burst pressure	37.5MPa
Transporting	Highway combined transport		Bursting disc device discharge aperture	≥20
Design service life	Fifteen years		Bursting disc device discharge aperture	≥20
OTHER DATA CAN BE CUSTOMERIZED BY NEED. PLEASE CONTACT WITH THE SUPPLIER
