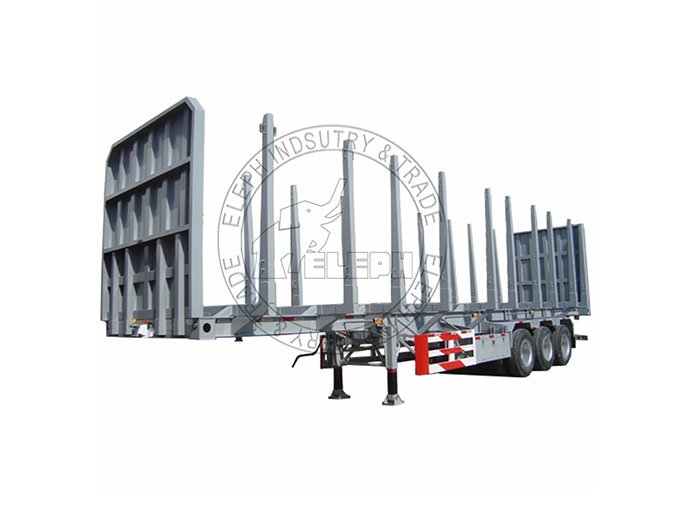

Wood Transport Semi Trailer
Model	ELE9500
Axle NO	3pcs
Wheel Base	1310 (mm)
Outside Dimension	10000-13000X2500X3980 L×W×H (mm)
Tyre specifications	12R22.5 16PR, 10.00R20 16PR, 11.00R20 18PR
Tyre No	12
leaf-spring Pcs	10 pcs
Landing Gear	28 tons
Axle load	13 T
Axle Brand	BPW,FUWA
Suspension	Mechanic Heavy Duty Leaf Spring Suspension, Air suspension
Material & Thickness	main beams Q345B/ST52-3
	through cross beams Q235
	Main beam Height: 500 mm
	Upper flange : 14mm
	Mid web : 8 mm
	Lower flange: 16mm
	Side Beam: 160 mm
Side Board	The height is from 600-1500mm
Brake System	Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30
Brake System	air chamber.
Electrical System	24V, 7core socket, lights according to European standards.
Payload	40Tons
Color & Logo	As the buyer's requests
Tool Box	1 box of standard tools
Spare tire carrier	1 set
Color and Logo	Depends on the buyer’s requirement.
The traction pin	3.5’ or 2’
Pin Height	According to the height of the tractor saddle.
Floor	4mm
