Wheel Loader

BACK

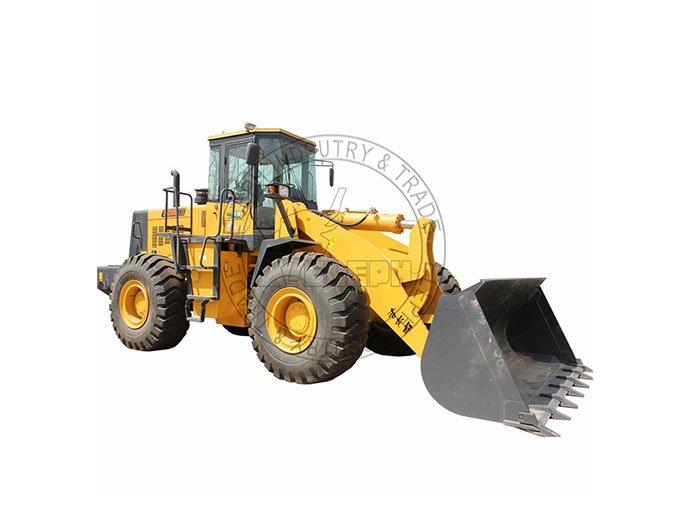

The SL50WA features greater mobility and turning radius thanks to a shortened wheel base.

It has all the power and lifting force of its cousin. It also sports a novel fuel tank that swings out for easier filling.

ITEM		SL50WA
Engine		Weichai WD10G220E23
Rated power (kW/rpm)		55/679
Displacement (L)		9.726
Minimum diesel consumption (g/kW•h)		215
Ma×imum torque (NM)		900
Operating weight (kg)		16800
Dimension L×W×H (mm)		7976×3026×3498
Center distance of tires (mm)		2250
Wheel base (mm)		2920
Loading capacity (t)		5
Bucket capacity (m3)		3
Ma×imum traction force (KN)		150
Ma×imum breakout force (KN)		160
Static tipping load (full turn) (kg)		10000
Gradeability (°)		30
Minimum turning radius (mm)	Outside of bucket	6970
Minimum turning radius (mm)	Outside of tire	6240
Turning angle (°)		35
Dumping height (mm)	Standard Arm	3417
	E×tended	-
	Long	-
Dumping reach (mm)	Standard Arm	1100
	E×tended	-
	Long	-
Lifting/Lifting, dumping and lowering time (S)		19/34
Travel speed (km/h)	Forward 1	0–13
	Forward 2	0–38
	Forward 3	-
	Forward 4	-
	Reverse 1	0–17
	Reverse 2	-
	Reverse 3	-
